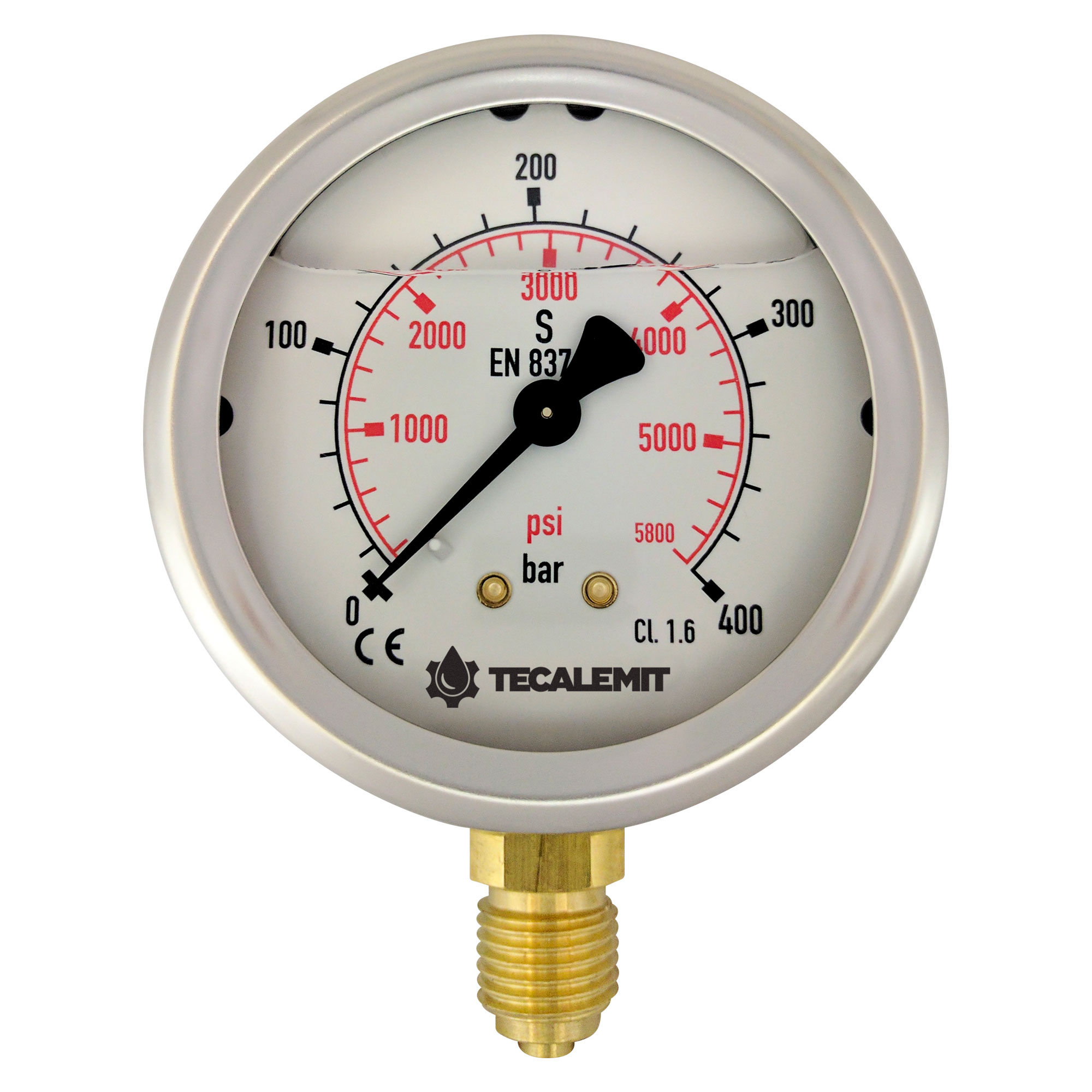

Tecalemit Pressure Gauges

Features a glycerine filled Ø63mm stainless steel body and acrylic sight glass with brass connection ports.

Technical Specifications.

• Gauge body: 63mm Ø.

• Housing: Stainless steel 1.4301.

• Sight glass: Acrylic.

• Glycerine filled.

• Measurement: Dual scale psi/bar.

• Measurement standard: EN 837-1.

• Accuracy class: 1.6 (+/- 1.6% FS as per EN 837-1).

• Temperature range: -20/60°C.

Catalogue Numbers

V22924P - 1,500psi (103bar), 1/4" BSPP, Entry location - Bottom
V15964 - 5,800psi (400bar), 1/4" BSPT, Entry location - Bottom
V15964N - 5,800psi (400bar), 1/4" NPT, Entry location - Bottom
V15964P - 5,800psi (400bar), 1/4" BSPP, Entry location - Bottom
V15964.RP - 5,800psi (400bar), 1/4" BSPP, Entry location - Rear
V15964.RT - 5,800psi (400bar), 1/4" BSPT, Entry location - Rear
