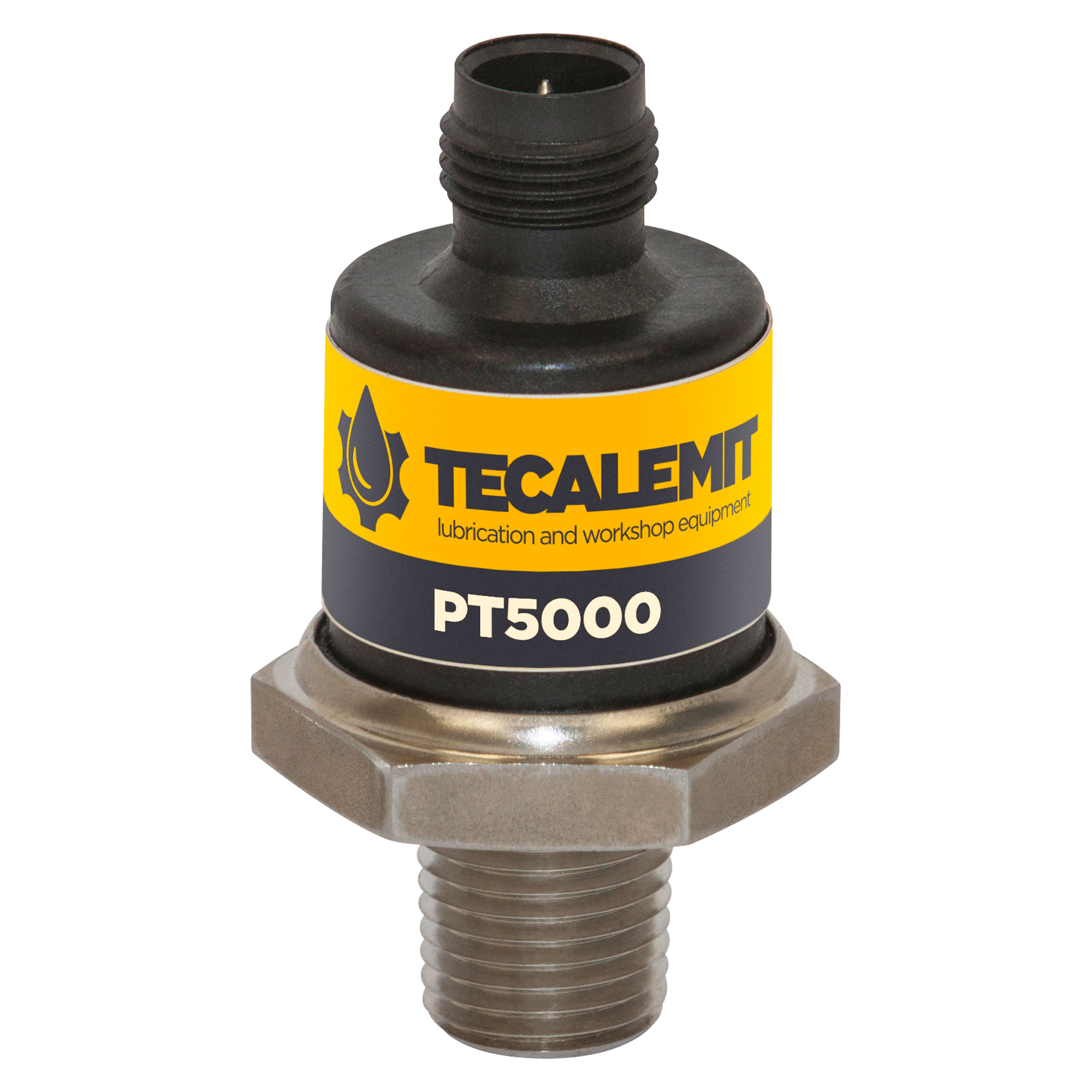

PT5000 - Pressure Transducer

PT5000 - Pressure Transducer

Add To Cart
PT5000 - Pressure Transducer

PT5000 - Pressure Transducer

PT5000 - Pressure Transducer

The Tecalemit pressure transducers enable real time monitoring of line pressure on automatic lubrication systems.

Utilising the industry standard of 4 - 20mA output, accompanied with field proven connectors and process ports, compact design, fast response time (<2ms), temperature compensation and input reverse voltage with output short circuit protection provides you with high reliability and flexibility.

Technical Specifications.

  • Pressure: 5,000psi
  • Proof pressure: 7,500psi
  • Burst pressure: 30,000psi
  • Body: 300 series stainless steel, Haynes 214 alloy. 1/4” BSPT
  • Housing: Amodel AS-4133 HS-PPA plastic @ IP65
  • Operating temperature: -40°C to 125°C
  • Shock: 100g peak (11ms)
  • Weight: 57g
  • Output: 4 - 20mA

Fitting Kit

PT.CABLE: 2m connection cable and plug
