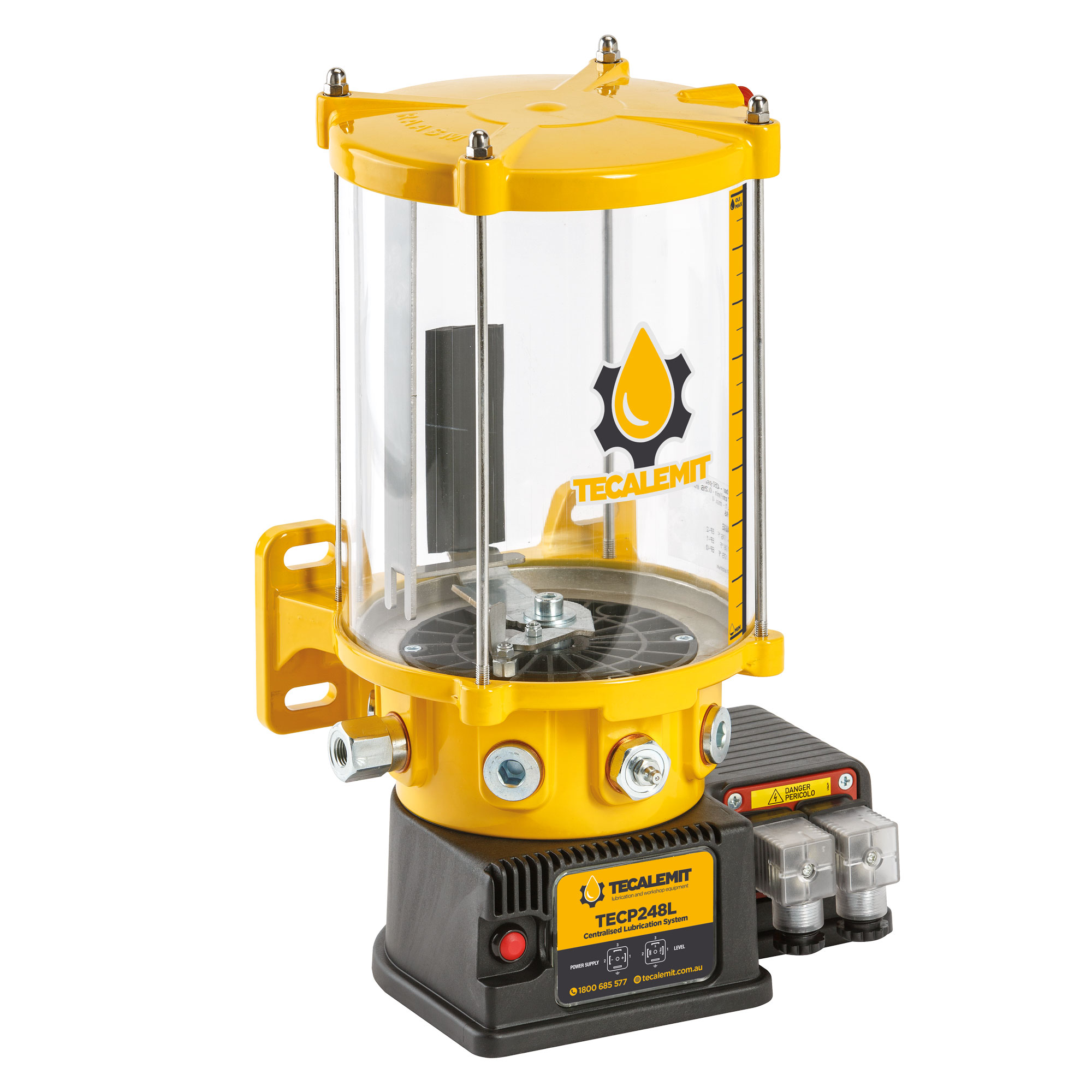

TEC.IP8L24 - Grease Pump Station

TEC.IP8L24 - Grease Pump Station

0.00
Add To Cart
TEC.IP8L24 - Grease Pump Station

TEC.IP8L24 - Grease Pump Station

TEC.IP8L24 - Grease Pump Station

Tecalemit’s pump station is designed for automatic greasing systems controlled by the customer PLC or remote controller. Economical and reliable for use on smaller systems with up to 8L capacity.

  • Grease Capacity: 8L
  • Grease Grade: NLGI 0 - 2

  • Maximum Pressure: 4,350psi (300bar)

  • Operating Temperature: -25°C / 60°C

  • Protection Rating: IP65

  • Pumping Element: 1 (2-4 optional)

  • Maximum Delivery Per Pumping Element: 4.27cc/min (outlet 1/4" BSPF)

  • Reservoir Inlet Filter: 150 micron with grease nipple or 1/4" BSPF

  • Voltage: 24VDC, 3A

  • Level Control: Low level magnetic-capacitive sensor

  • Weight: 7.4kg

  • Size: 250mm wide x 530mm high x 200mm deep

Spares and Replacement Items

  • TEC.IPPU Pumping unit 4.27cc/min
  • TEC.IPF Filter
  • TEC.IPLS Level switch
  • TC100D2 24 VDC controller
