TECBS30 - 3 Tonne Full Rise Scissor Lift

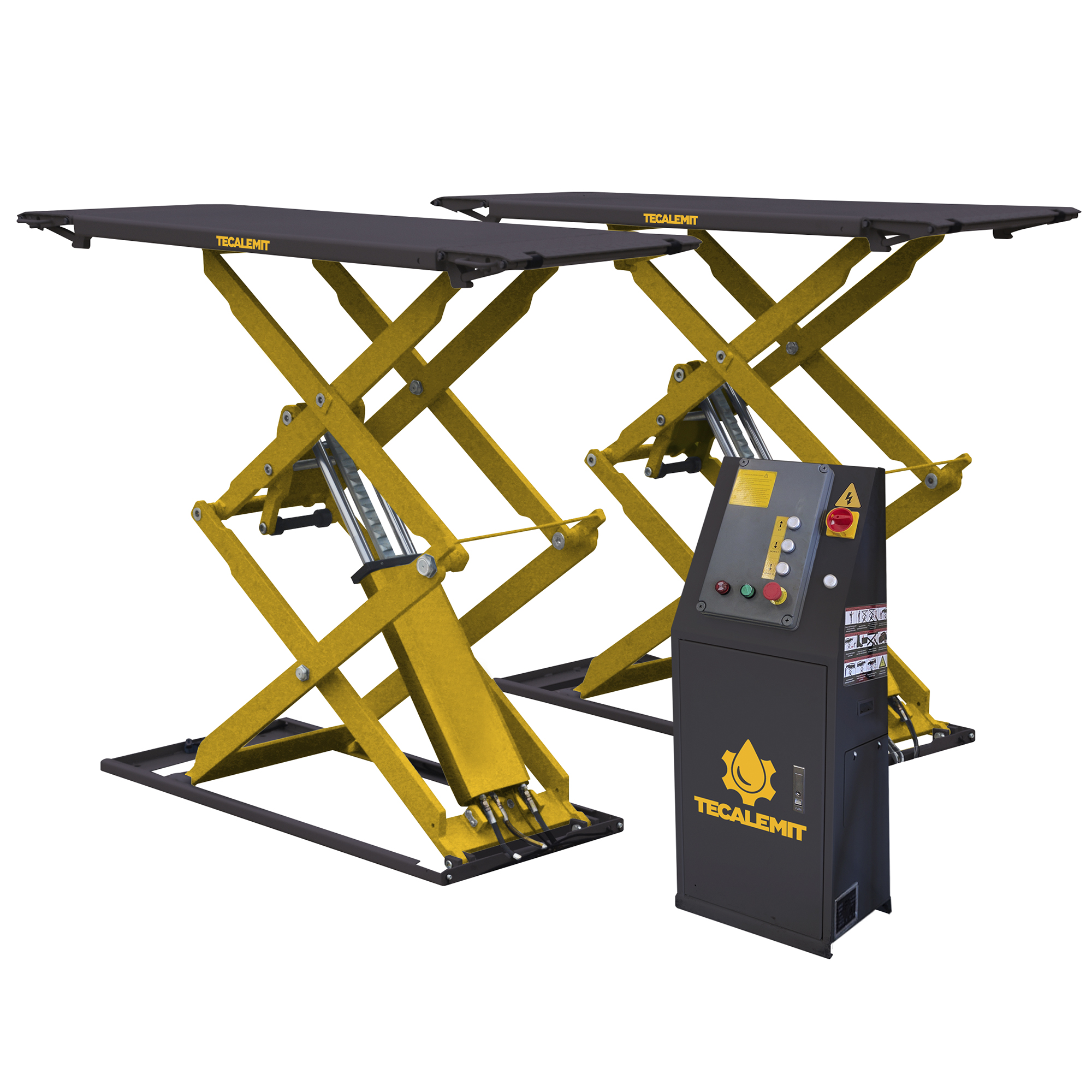

The Tecalemit 3 tonne low profile scissor lift is the perfect solution for quick service bays.

The hoist features a surface mounted design, four cylinder structure, anti-skid diamond plate, Aluminium motor and  24V control system.

Additional safety features include an alarm when platforms reach 500mm above ground, pneumatic safety locks, burst valve and platform extensions for longer vehicles.

The Hoist Features:

  • 110mm low profile, surface mounted design.
  • Four cylinder structure.
  • Dual circuit hydraulics for added safety.
  • Anti-skid diamond plate.
  • Aluminium motor to prevent overheating.
  • Alarm when platforms reach 500mm above ground.
  • Pneumatic safety lock.
  • Burst valve.
  • Platform extensions for longer vehicles.

Technical Specifications.

  • Lifting Capacity: 3000kg
  • Maximum Lift Height: 1850mm
  • Minimum Pad Height: 110mm
  • Platform Length: 2083mm
  • Platform Width: 650mm
  • Electric Motor: 3 Phase 415V
  • Lifting Time: 50 seconds
  • Minimum Concrete Thickness*: ≥120mm 20,7MPa Reinforced
  • Recommended Anchor Bolt: Ramset TruBolt M16x125
  • Drill Hole Diameter: 16mm
  • Drill Hole Depth: 100mm
  • Tightening Torque: 150Nm

Optional Extras

  • 240V Single Phase electric motor.

Spare Parts Support

Tecalemit stock a comprehensive supply of spare parts for all our hoists to ensure minimal downtime.

With experienced staff on-hand to offer technical advice on all aspects, from hoist selection, installation, operation and on-going service and maintenance.

*NOTE: The lift should be installed on a smooth and solid concrete surface with its strength more than 3000psi (20.7MPa) with a minimum thickness of 120mm.
