TECGJ20A - 2 Tonne Air Operated Jacking Beam (Suitable for TECG Models)

TECGJ20A - 2 Tonne Air Operated Jacking Beam (Suitable for TECG Models)

0.00
Add To Cart

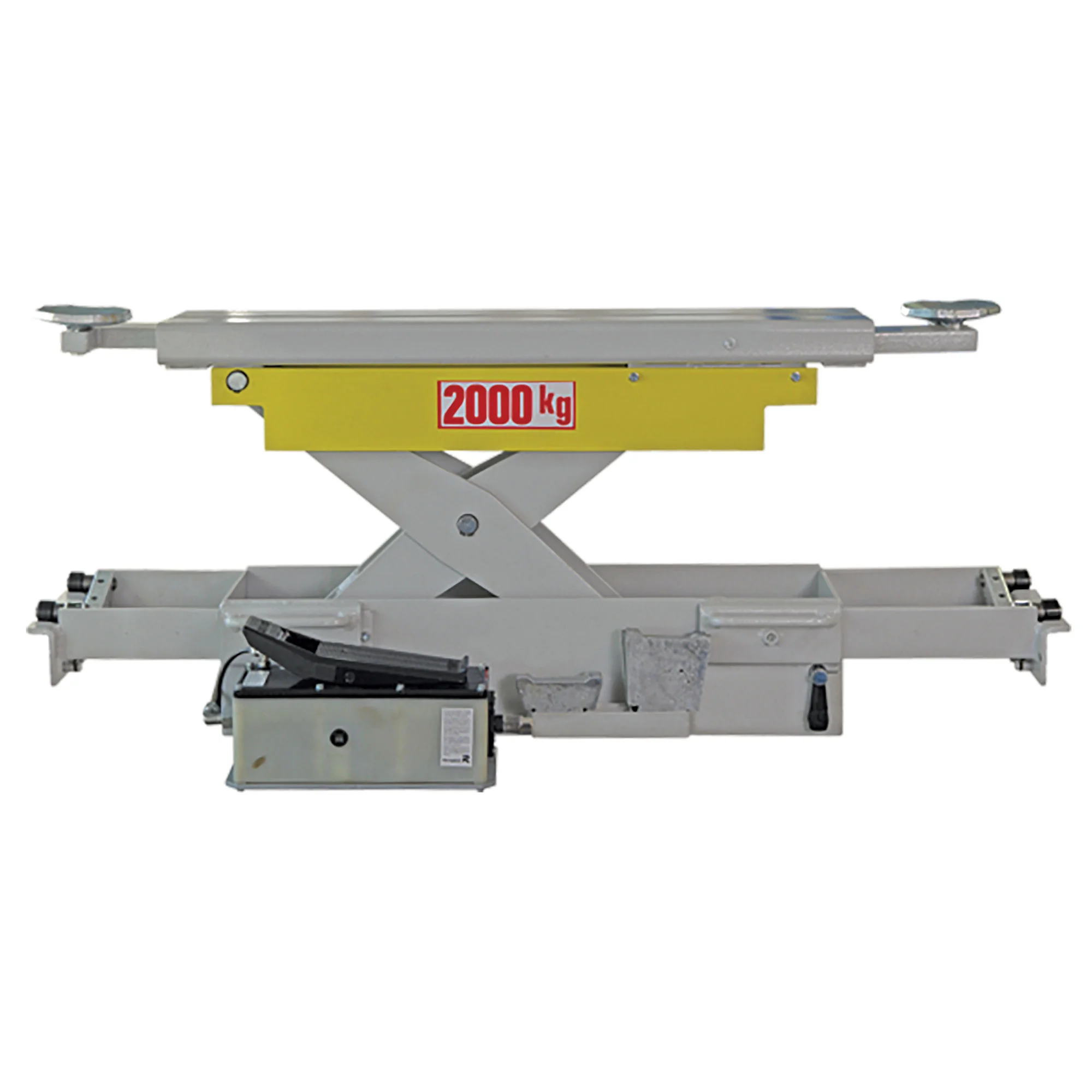

 TECGJ20A - 2 Tonne Air Operated Jacking Beam

TECGJ20A - 2 Tonne Air Operated Jacking Beam

TECGJ20A - 2 Tonne Air Operated Jacking Beam

The Tecalemit Jacking Beam is designed for use with the entire range of 4 tonne 4 post hoists*, pits and service docks and feature automatically-engaging and pneumatic-release mechanical lock device and two-hand “dead-man” lowering control.

  • *Suitable for: TECG440, TECG440L & TECG440W Models

  • Lifting Capacity: 2000kg

  • Maximum Lift Height: 355mm

  • Minimum Extension (Jibs Closed): 923mm

  • Maximum Extension (Jibs Open): 1400mm

  • Minimum Wheelbase of Sliding Wheels: 856mm

  • Maximum Wheelbase of Sliding Wheels: 1134mm

  • Beam Weight: 95kg
