33.2011NHHV2 - 3/4" 70 L/min Diaphragm Pump

33.2011NHHV2 - 3/4" 70 L/min Diaphragm Pump

0.00
Add To Cart
33.2011NHHV2 - 3/4" 70 L/min Diaphragm Pump

33.2011NHHV2 - 3/4" 70 L/min Diaphragm Pump

33.2011NHHV2 - 3/4" 70 L/min Diaphragm Pump

The RAASM range of diaphragm pumps are extremely versatile and can be mounted on wall brackets, trailers, moving machinery, drums or large reservoirs and are suitable for a wide variety of applications.

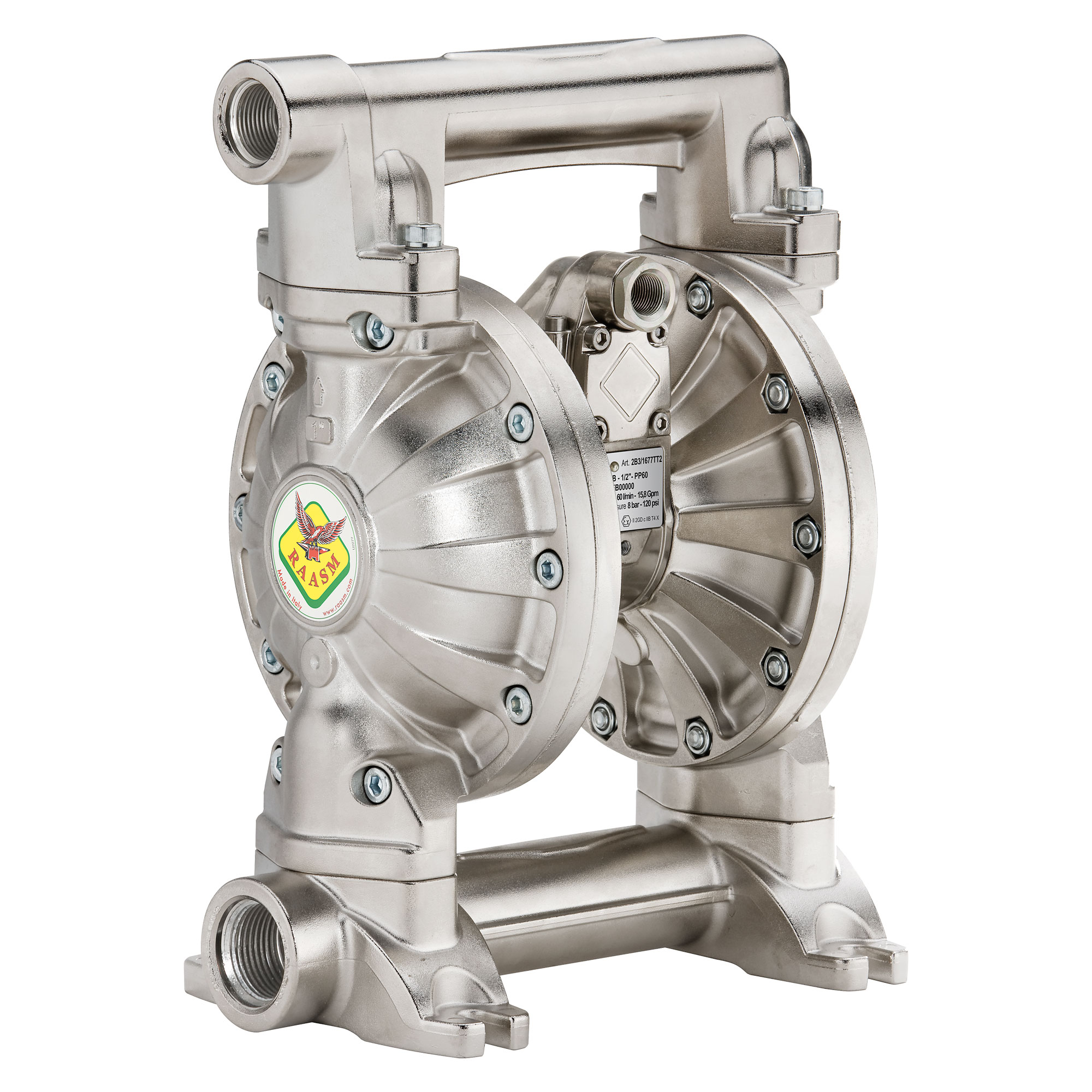

The RAASM 340-AB series diaphragm pump is made from die-cast aluminium with high-quality components making it a reliable pump in extreme conditions.

Ideal for transferring oil, diesel, water, mineral and vegetable oils, abrasive fluids and fluids with suspended solids.

  • Compression Ratio: 1:1
  • Flow Rate: 70 L/min

  • Air Consumption: 500 L/min (17.5 cfm) at 116psi

  • Air Inlet Connection: F 3/8” G

  • Fluid Inlet Connection: F 3/4” G

  • Fluid Outlet Connection: F 3/4” G

  • Seals: NBR

  • Maximum Solids Diameter: 1.5mm
