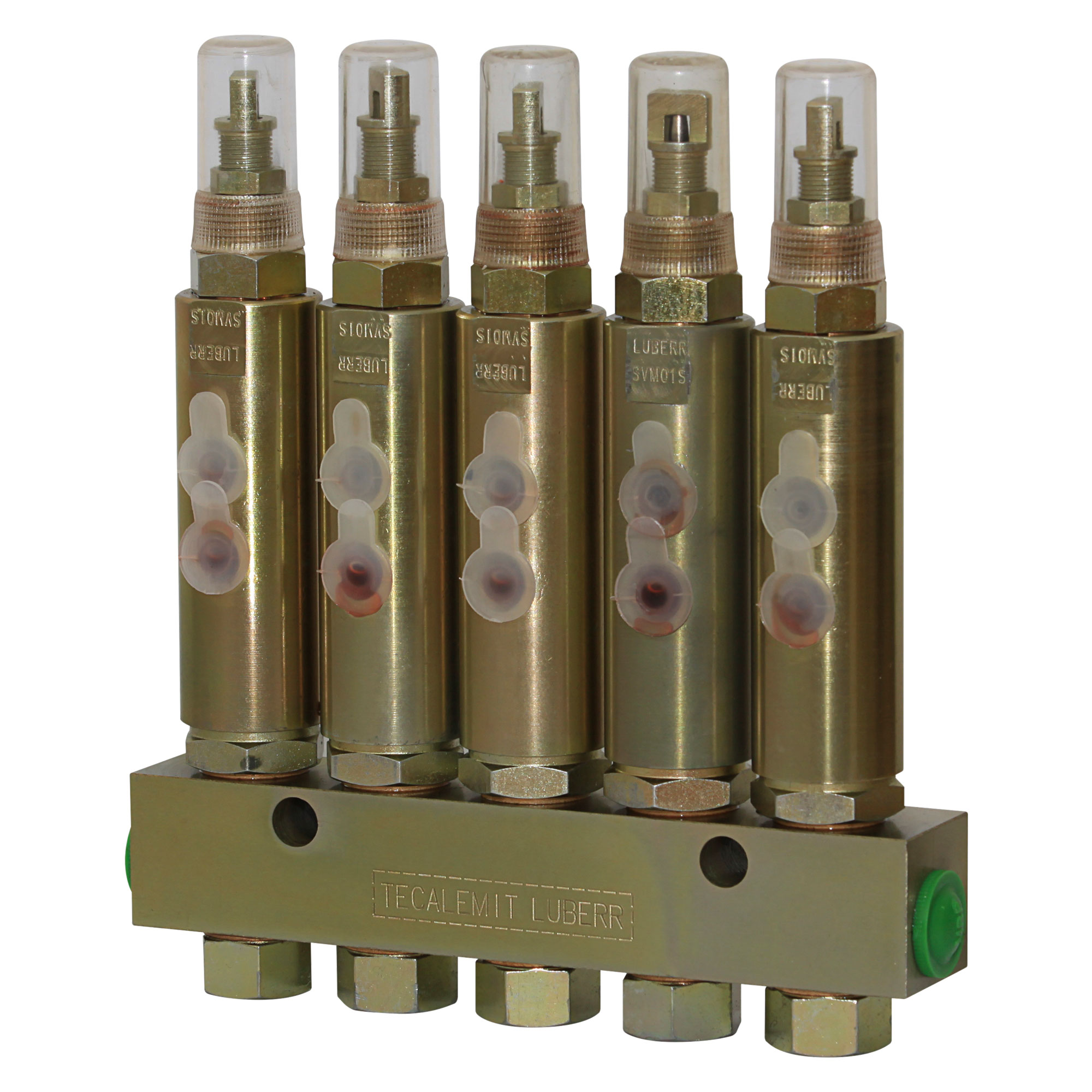

TSLI.5 - Single Line Grease Injector & Manifold Assembly

The Tecalemit TSLI series grease injector has a modular design and is utilised in automatic greasing systems.

The TSLI injector has been engineered for increased service life and performance, with the use of honed components, a hardened bore/plunger and have been tested to exceed over 200,000 cycles. The injectors come supplied with a screw on visual indicator cap with a stainless steel indicator pin and manual lube point fitting.

Technical Specifications.

• Number of Injectors: 5

• Size: 171 x 200 x 50 mm

• Weight: 4.2kg

• Minimum lubricant output: 0.13 cc ( 0.008ci).

• Maximum lubricant output: 1.31 cc ( 0.080ci).

• Minimum operating pressure: 1,800psi (125bar).

• Maximum operating pressure: 3,300psi (230bar).

• Vent pressure: 600psi (40 bar).

• Inlet: 3/8” NPTF.

• Outlet: 1/8” NPTF.

• Lubricant: Up to NLGI 2.

• Material: Mild steel plated.
