63095 - 65:1 Ratio Grease Pump, 180kg Drums

63095 - 65:1 Ratio Grease Pump, 180kg Drums

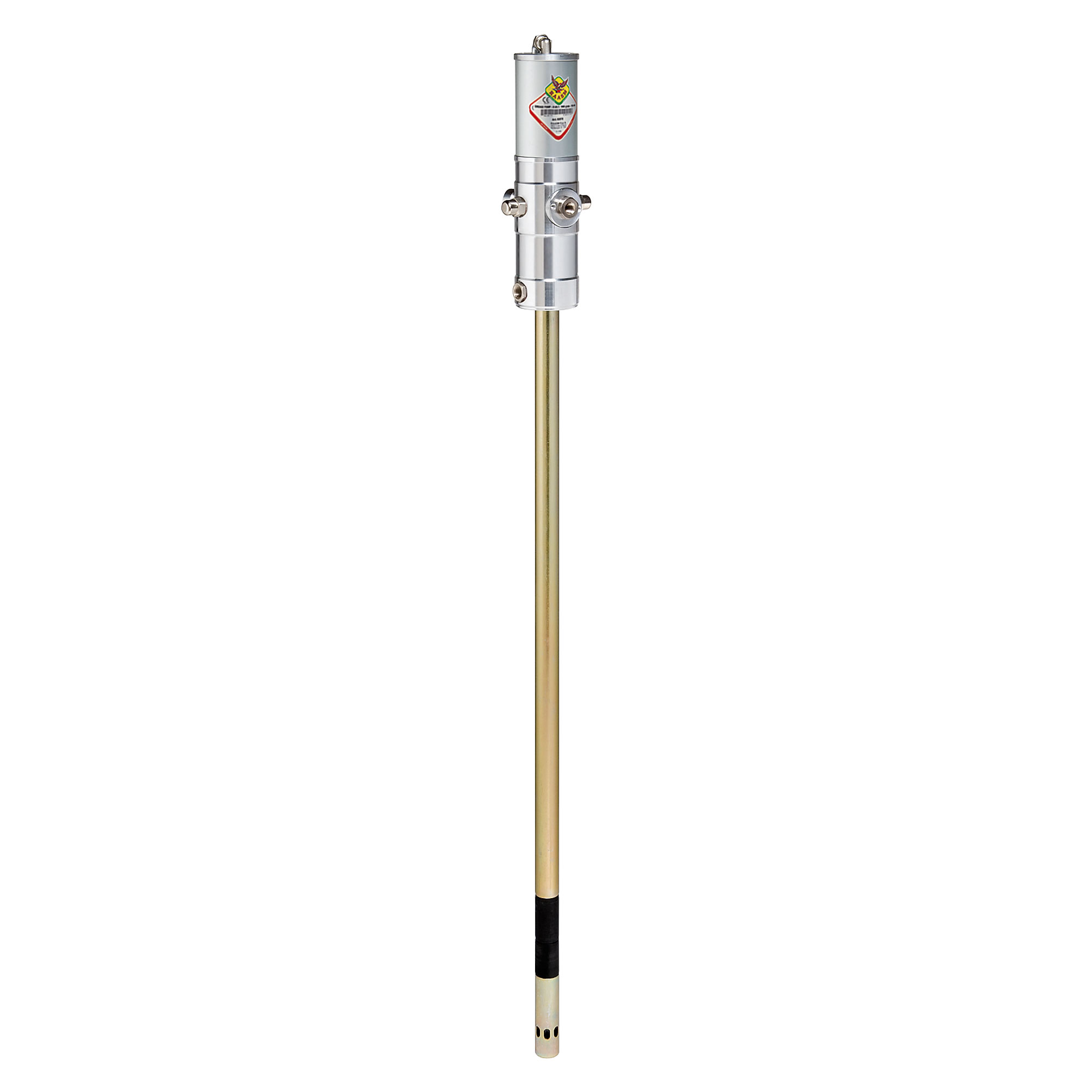

63095 - Air Operated Grease Pump

High Pressure, Medium Volume Grease Pump to suit 180kg Drums.

The RAASM 700 Series, 65:1 ratio grease pumps are designed for transferring medium to high viscosity grease at high pressures. They are ideal for mounting to drums and servicing oil bars. For heavier gear oils, transferring longer distances or servicing hose reels, higher pressure grease pumps should be used.

  • Compression Ratio: 65:1

  • Flow Rate: 1.9 kg/min

  • Air Cylinder Diameter: 70mm

  • Air Consumption: 440 L/min (15.5 cfm) at 116psi

  • Air Inlet Connection: F 1/4” G

  • Fluid Outlet Connection: F 3/8” G

  • Suction Tube Length: 940mm

  • Suction Tube Diameter: 30mm

Accessories

  • Drum Cover: Ø 600mm, Catalogue Number 65600

  • Follower Plate: Ø 585mm, Catalogue Number 66590
