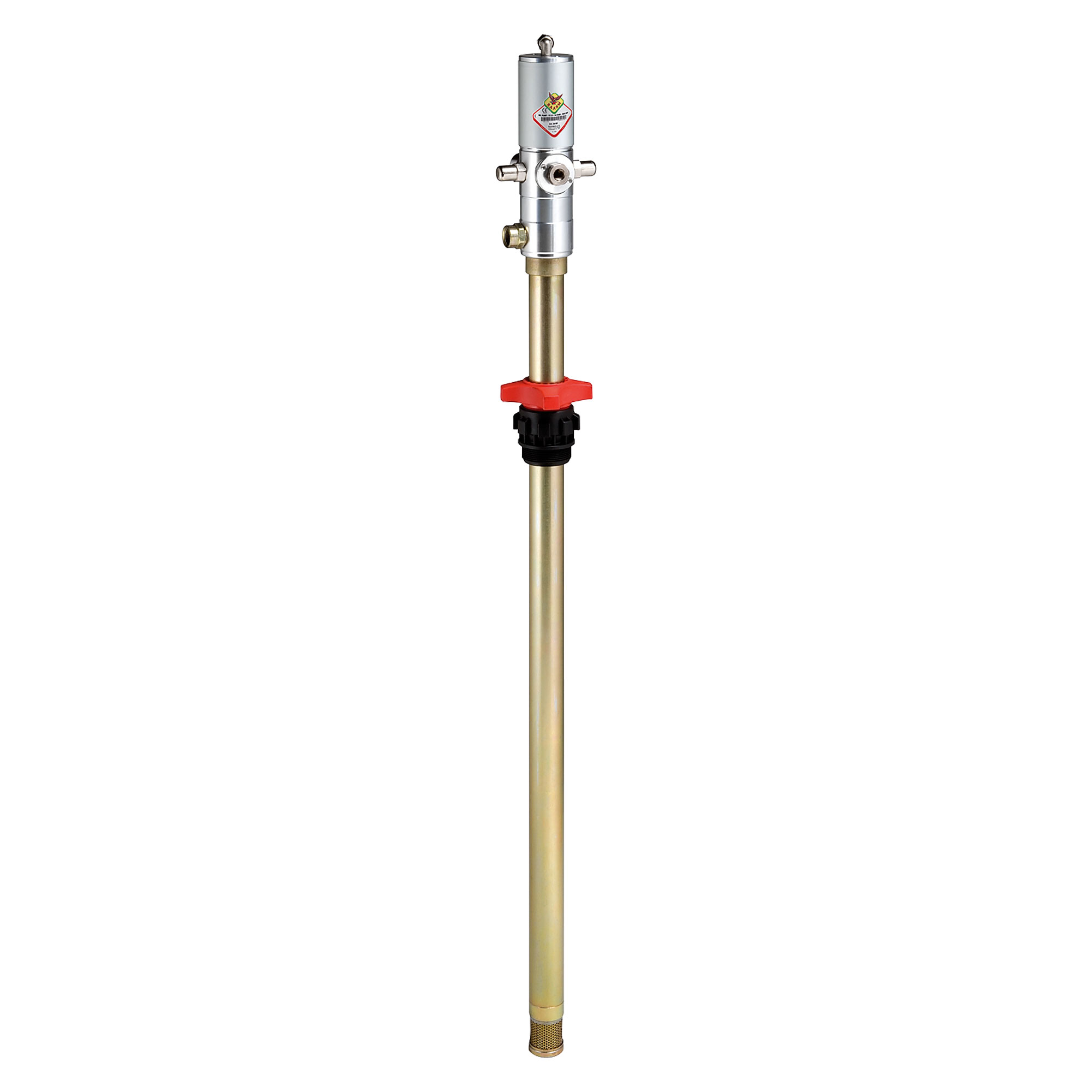

33096 - Air Operated, Oil Drum Pump

Low Pressure, High Volume Oil Transfer Pump.

The RAASM 1:1 Ratio pumps are designed for transferring low viscosity liquids relatively short distances at low pressures. They are ideal for mounting in drums and servicing oil bars. For heavier gear oils and longer distances or for servicing hose reels, higher pressure pumps should be used.

• Compression Ratio: 1:1

• Flow Rate: 23 L/min

• Air Cylinder Diameter: 60mm

• Air Consumption: 230 L/min (8.1 cfm) at 116psi

• Air Inlet Connection: F 1/4” G

• Fluid Outlet Connection: F 1/2” G

• Suction Tube Length: 940mm

• Suction Tube Diameter: 42mm
