90C.51 - Air Operated, High Volume Oil Pump Stub

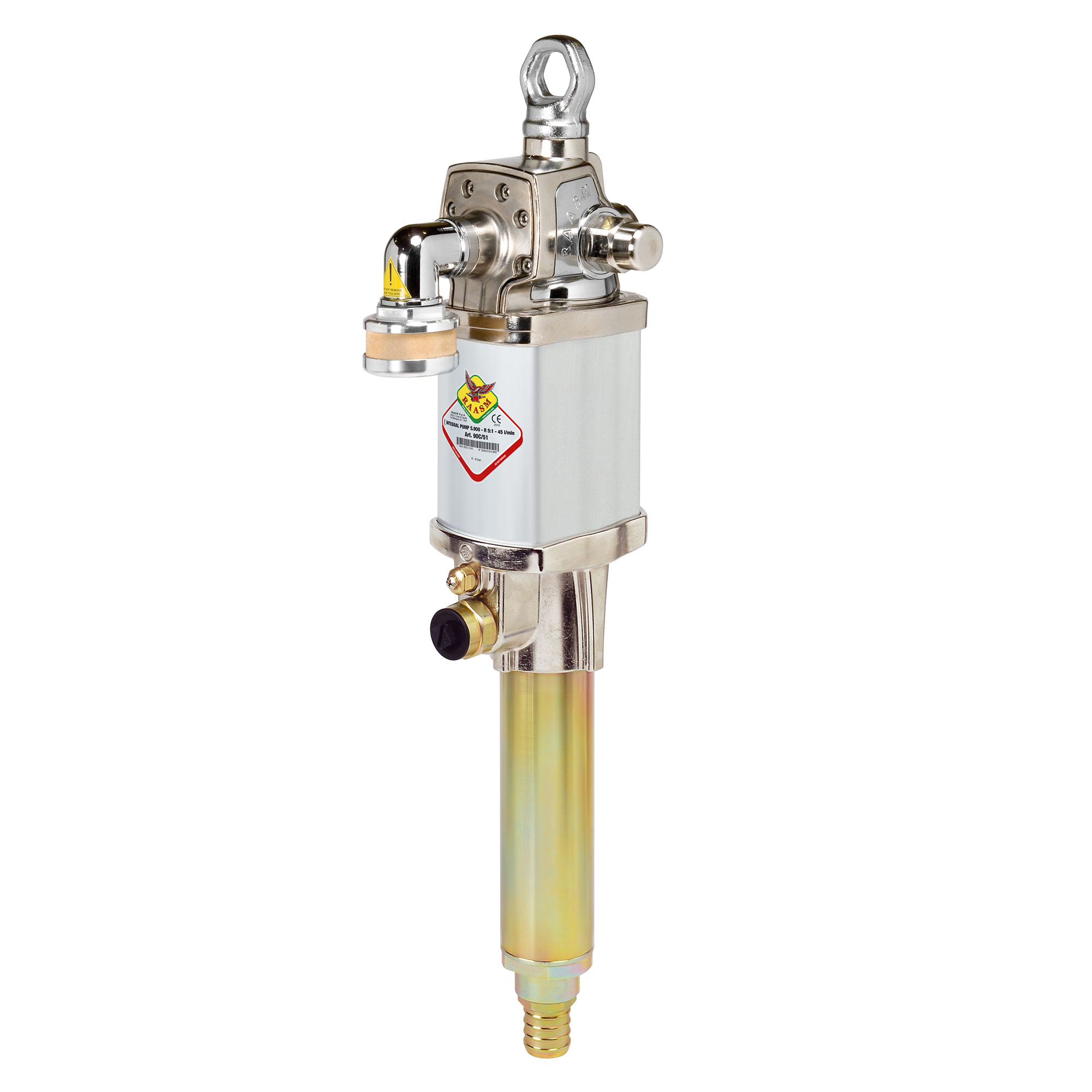

High Pressure, High Volume Oil Pump.

RAASM 900 Series 5:1 ratio industrial, air-operated, double-action pumps are suitable for transferring oils, lubricants and similar products with very high viscosity. The double action guarantees the delivery of a continuous and constant flow, ideal for all needs. Particularly effective in systems equipped with multiple distribution points.

• Compression Ratio: 5:1

• Flow Rate: 45 L/min

• Air Cylinder Diameter: 90mm

• Air Consumption: 1600 L/min (56 cfm) at 116psi

• Air Inlet Connection: F 1/2” G

• Fluid Outlet Connection: F 3/4” G

• Suction Tube Diameter: 62mm

• Suitable for Wall Mounting: Order 10.10 in conjunction with pump
