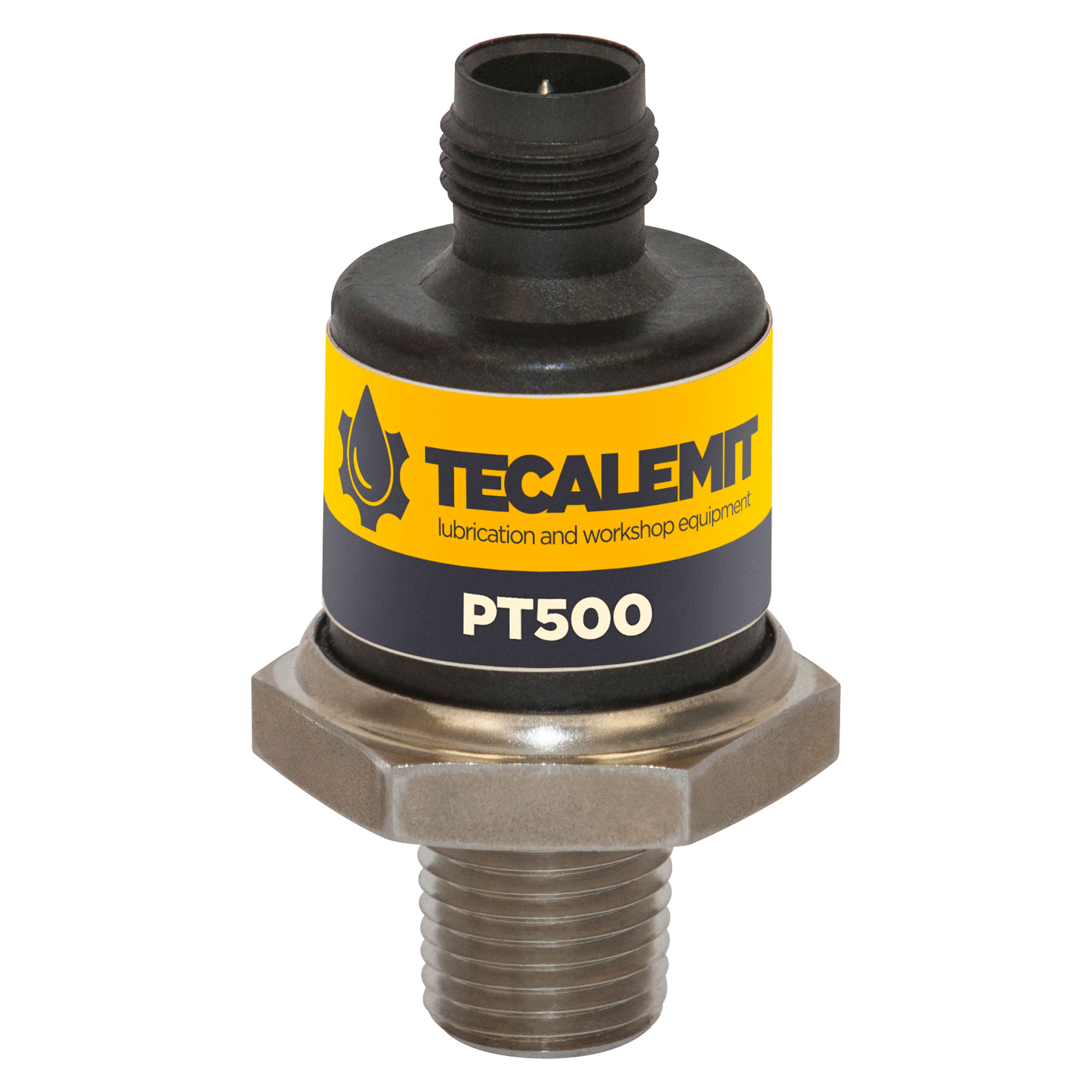

PT500 - Pressure Transducer

The Tecalemit pressure transducers enable real time monitoring of line pressure on automatic lubrication systems.

Utilising the industry standard 4 - 20mA output. Accompanied with field proven connectors and process ports, compact design, fast response time (<2ms), temperature compensation and input reverse voltage with output short circuit protection they provide high reliability and flexibility.

Technical Specifications.

• Pressure: 500psi

• Proof pressure: 750psi

• Burst pressure: 2,068psi

• Body: 300 series stainless steel, Haynes 214 alloy. 1/4” BSPT

• Housing: Amodel AS-4133 HS-PPA plastic @ IP65

• Operating temperature: -30°C to 125°C

• Shock: 100g peak (11ms)

• Weight: 57g

• Output: 4 - 20mA

• Temperature compensated reverse polarity

Fitting Kit

PT.CABLE: 2m connection cable and plug - straight

PT.CABLE90: 2m connection cable and plug - 90° connector
