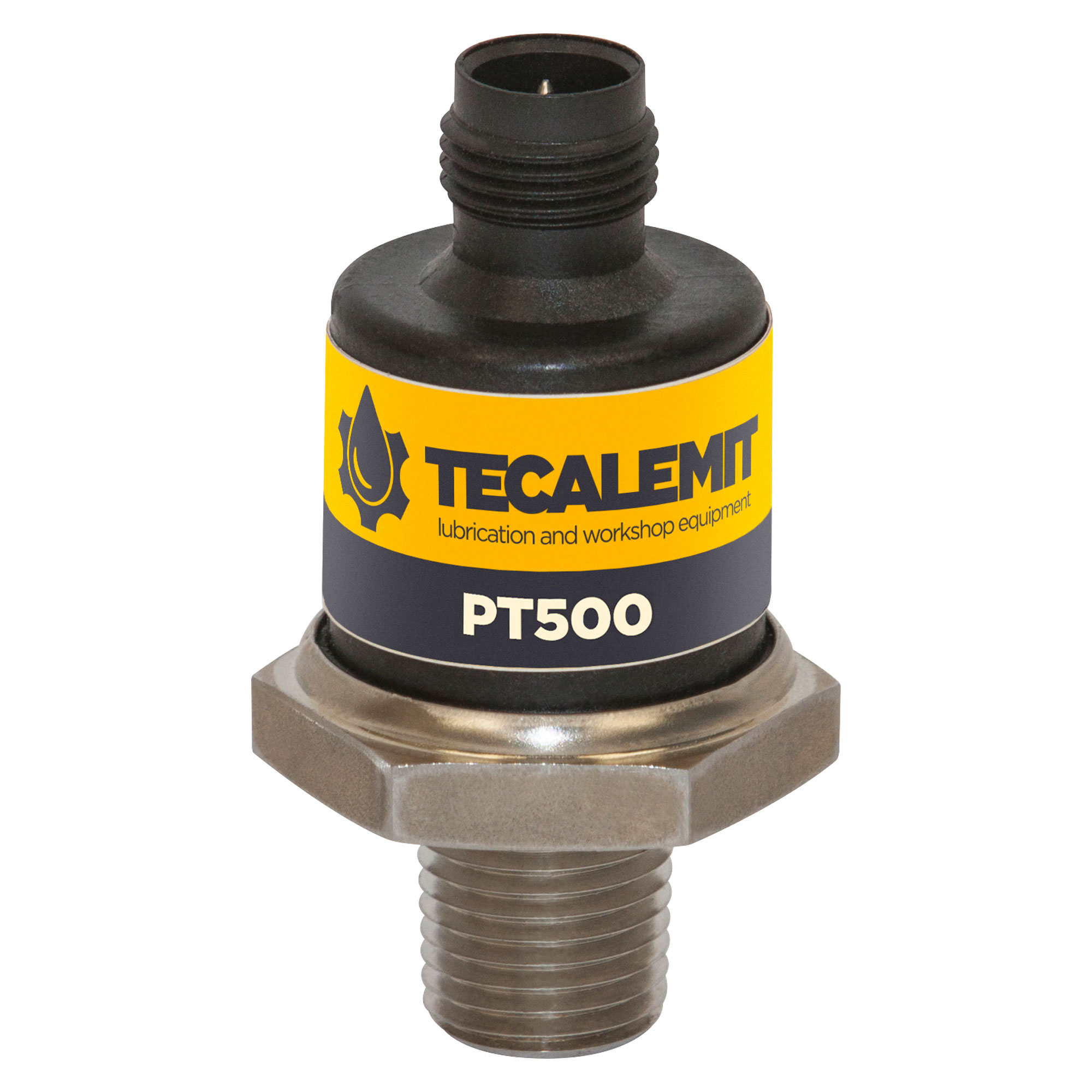

PT500 - Pressure Transducer

PT500 - Pressure Transducer

PT500 - Pressure Transducer

The Tecalemit pressure transducers enable real time monitoring of line pressure on automatic lubrication systems.

Utilising the industry standard 4 - 20mA output. Accompanied with field proven connectors and process ports, compact design, fast response time (<2ms), temperature compensation and input reverse voltage with output short circuit protection they provide high reliability and flexibility.

Technical Specifications.

  • Pressure: 500psi

  • Proof pressure: 750psi

  • Burst pressure: 2,068psi

  • Body: 300 series stainless steel, Haynes 214 alloy. 1/4” BSPT

  • Housing: Amodel AS-4133 HS-PPA plastic @ IP65

  • Operating temperature: -30°C to 125°C

  • Shock: 100g peak (11ms)

  • Weight: 57g

  • Output: 4 - 20mA

  • Temperature compensated reverse polarity

Fitting Kit

PT.CABLE: 2m connection cable and plug - straight

PT.CABLE90: 2m connection cable and plug - 90° connector
