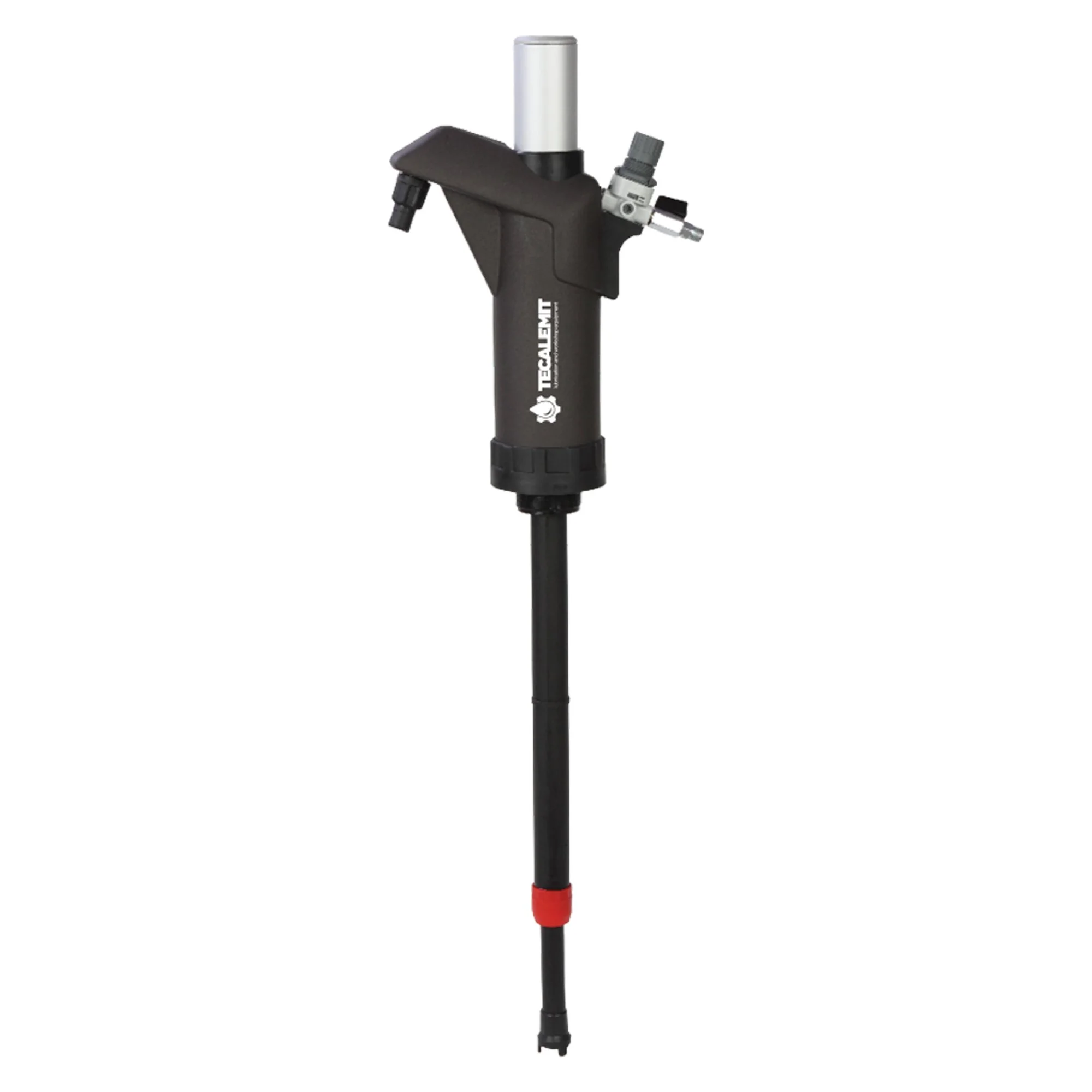

TEC93205 - AdBlue Air Operated Pump Kit

The Tecalemit air operated AdBlue transfer pump redefines fluid dispensing with innovation and versatility. The choice of material makes this pump compatible with many more fluids, compared to other air pumps which primarily pump oil.

Equipped with a built-in 2" bung adaptor and an adjustable lock nut, it provides secure drum attachment with flexible positioning. Regulated air supply via a ball valve and air regulator ensures safe operation at a maximum pressure of 100 psi.

Complete with a telescopic suction tube and a flow rate of up to 30 L/min, this pump is a comprehensive solution for various non-flammable liquid applications.

• Flow Rate: Up to 30 L/min

• Working Pressure: 30 - 100 psi (2-7 Bar)

• Air Consumption: 125 L/min (4.4 cfm) at 100psi

• Air Inlet Connection: 1/4" F

• Fluid Outlet Connection: 3/4" (19.5mm dia)

• Hose & Nozzle: 2m × 3/4" ID PVC hose with Nylon dispensing nozzle

• Pump Inlet : 1"

• Noise Level: 78 db

• Max. Temp of Media: 60°C

• Max. Viscosity: SAE 50

• Wetted Components: Polypropylene, Viton, Stainless Steel

• Suitable Fluids: AdBlue, Water-based media, Detergents, Soaps, Antifreeze,Windshield Washer, Hydraulic Oils, Lubricants, Herbicides & Pesticides, Urea.

  Wash out regularly to prevent potential AdBlue crystallisation

• Suitable Bung Adaptors: TEC.BA2T, TEC.BA61D & TEC.BA2M

Barcode: 9361319000923
