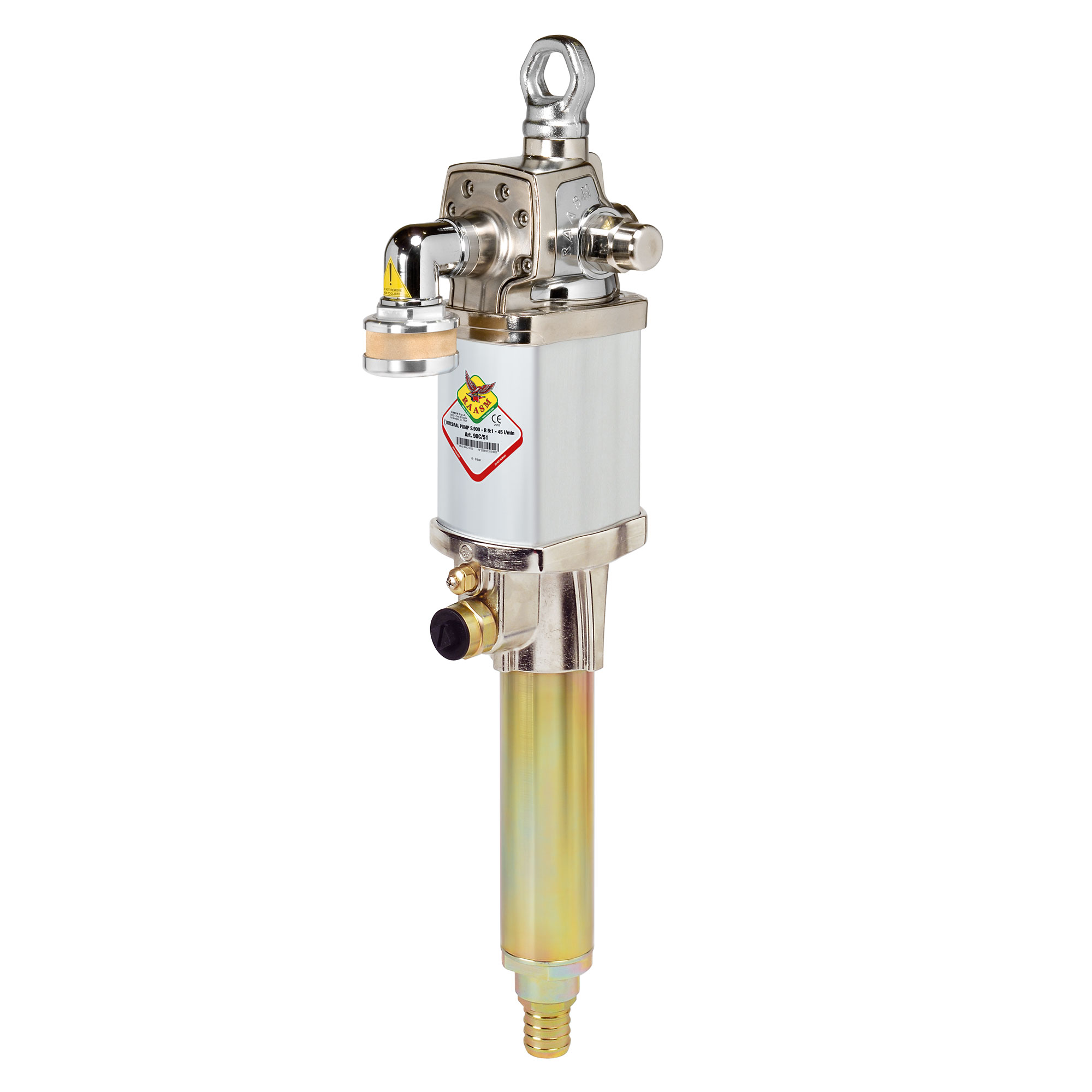

90C.71 - 7:1 Ratio, High Volume Oil Pump Stub

90C.71 - 7:1 Ratio, High Volume Oil Pump Stub

90C.71 - Air Operated, Oil Drum Pump Stub

High Pressure, High Volume Oil Pump.

RAASM 900 Series 7:1 ratio industrial, air-operated, double-action pumps are suitable for transferring oils, lubricants and similar products with very high viscosity. The double action guarantees the delivery of a continuous and constant flow, ideal for all needs. Particularly effective in systems equipped with multiple distribution points.

  • Compression Ratio: 7:1

  • Flow Rate: 30 L/min

  • Air Cylinder Diameter: 90mm

  • Air Consumption: 1600 L/min (56 cfm) at 116psi

  • Air Inlet Connection: F 1/2” G

  • Fluid Outlet Connection: F 3/4” G

  • Suction Tube Diameter: 53mm

  • Suitable for Wall Mounting: Order 10.10 in conjunction with pump
