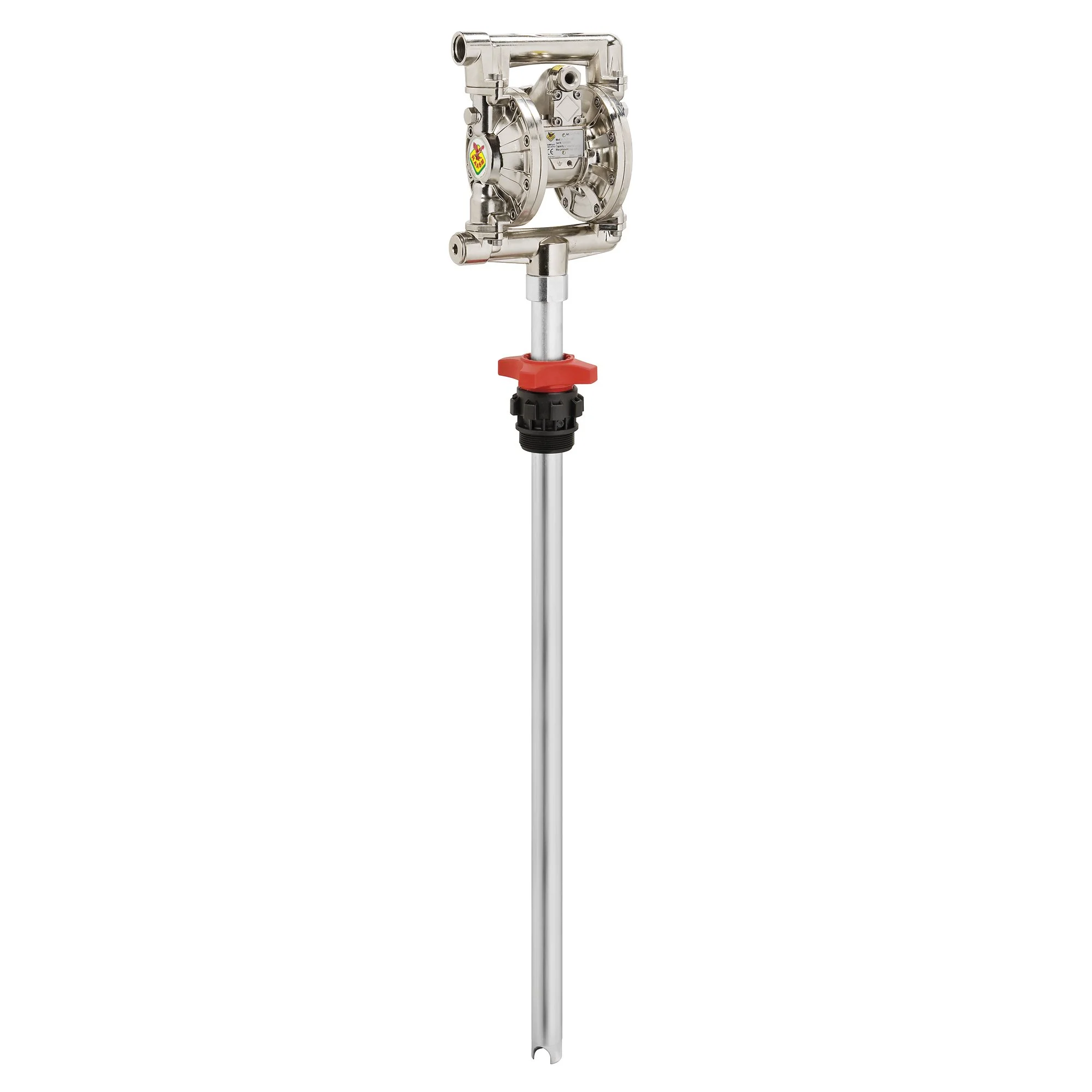

33500 - 1:1 Ratio, Diaphragm Drum Pump Kit

The RAASM Diaphragm Drum Pump kit can be used across both new fluids (oil and coolant), allowing for fast and efficient high flow delivery from drums. It is also Ideal for transferring fluids even in the presence of suspended solids (waste oil) from drums to permanent storage tanks.

• Compression Ratio: 1:1

• Flow Rate: 70 L/min

• Ball Valve Material: Hytrel

• Air Consumption: 500 L/min (17.5 cfm) at 116psi

• Air Inlet Connection: F 3/8” G

• Fluid Outlet Connection: Suction tube ø 34 mm F 3/4” G

• Drums: 205L

• Max sSolids Diameter: ø 1.5 mm
