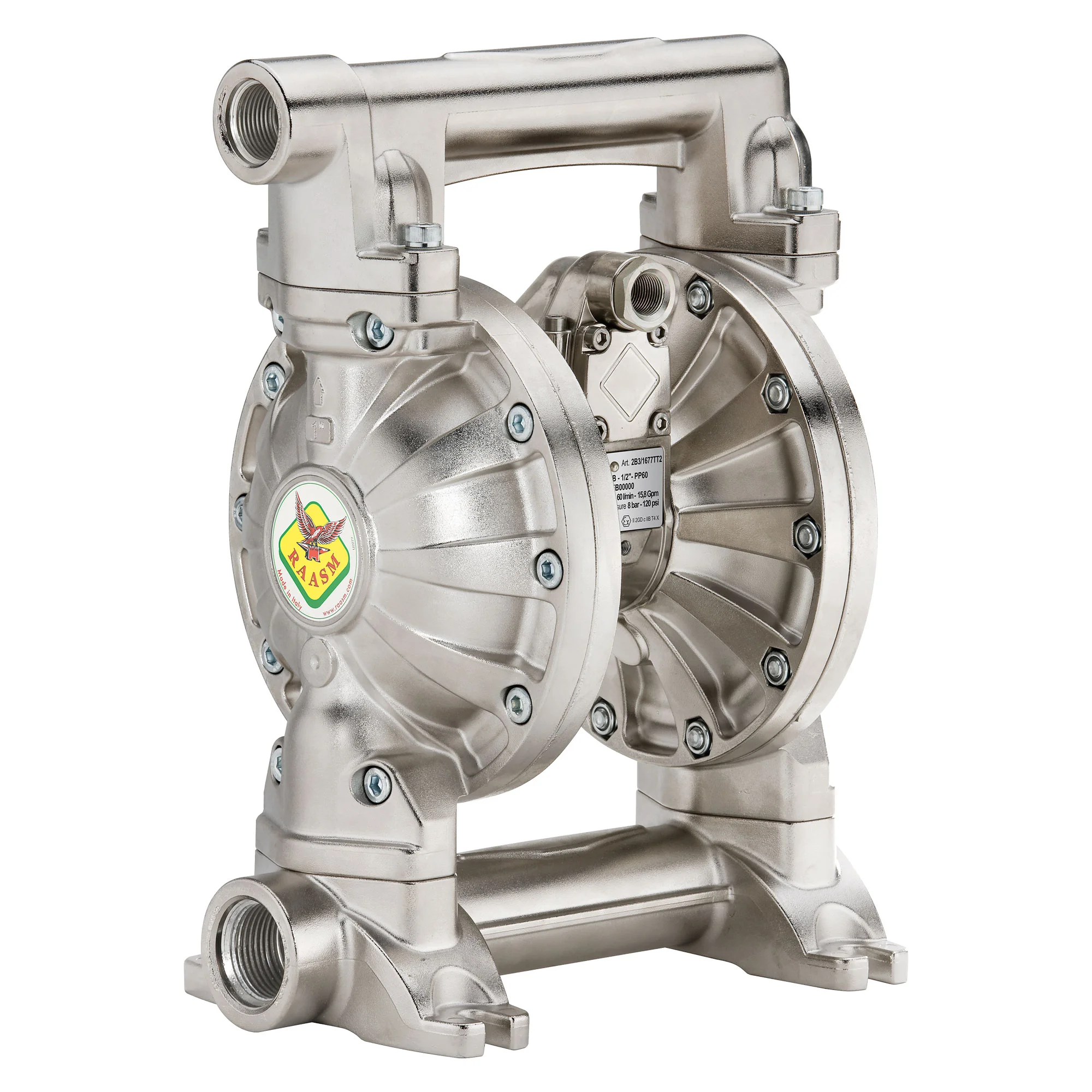

33.2011NHHV2 - 3/4" 70 L/min Diaphragm Pump

The RAASM range of diaphragm pumps are extremely versatile and can be mounted on wall brackets, trailers, moving machinery, drums or large reservoirs and are suitable for a wide variety of applications.

The RAASM 340-AB series diaphragm pump is made from die-cast aluminium with high-quality components making it a reliable pump in extreme conditions.

Ideal for transferring oil, diesel, water, mineral and vegetable oils, abrasive fluids and fluids with suspended solids.

• Compression Ratio: 1:1

• Flow Rate: 70 L/min

• Air Consumption: 500 L/min (17.5 cfm) at 116psi

• Air Inlet Connection: F 3/8” G

• Fluid Inlet Connection: F 3/4” G

• Fluid Outlet Connection: F 3/4” G

• Seals: NBR

• Maximum Solids Diameter: 1.5mm
